3.5X 7X 45X 90X Industrial Lab Simul Focal Adjustable Stereo Microscope Trinocular Microscope Set For PCB SMD Soldering Repair

$ 606 – $ 1.023

SKU: 4000013803565 Category:

Description

  • Hign-concerned Chemical: None
  • Magnification Ratio: 500X & Under
  • Drawtube: Trinocular
  • Certification: CE
  • Material: Metal
  • Origin: Mainland China
  • Model Number: 76mm Focusing Ring + Working Stand + LED Ring light Set
  • Brand Name: Eakins
  • Theory: Stereo Microscope
  • Is Smart Device: No
  • Features: High Definition,Handheld,Portable,Digital
  • Zoom magnification: 7-45x 7x-90x 3.5x-45x 3.5X-90x
  • Eyepiece: WF10X/20mm large field
  • Head function: 360 degree rotable
  • Objective Lens: 0.5X 2.0X 1.0X Auxilliary Objective Lens
  • Glass: 1X Protective Function Lens
  • Working height: 2X – 40mm 1X – 100mm 0.5X – 165mm
  • Fit For: PCB Soldering Phone Repair PCB inspection
  • Adapter: 23.2mm C Mount Adapter
  • Illuminator: LED Ring Light
  • Size: 375 mm x 255mm x 325mm
  • Focusing Holder: 76mm
  • For: Machine Turning Milling Machine Metal Processing
  • 1 For: Phone Watch Jewelry Observation
  • 2 For: Phone Capacitor IC BGA CPU SMD Chip Flat Cable Soldering Repair
  • 3 For: Smart Phone Mechanical Watch Jewelry Accessories
  • Accessories 2: Rubber Patch
  • Microscope Pillar: 32mm
  • Imaging: 3D
  • Accessories:: Microscope Head
  • Apply: Industrial Laboratory Scientific Research Teaching

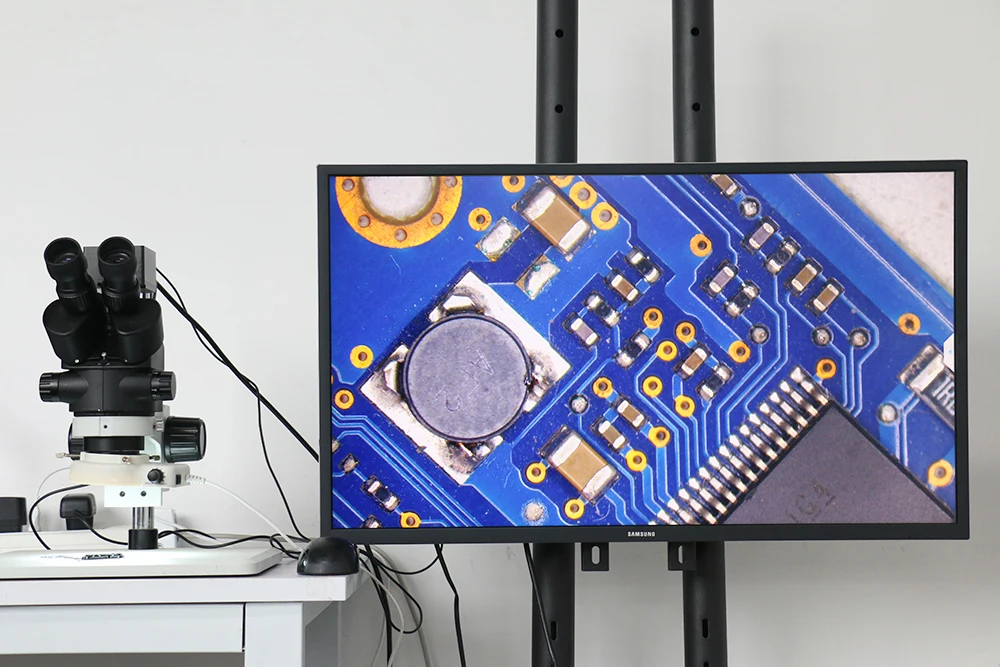

Note: If you need to connect an industrial camera and use a monitor to output images, we recommend you to use a 0.5X C mount adapter lens, which can achieve Simul focal effect and get a larger field of view!



Stereo microscopes are easy to operate and widely used.
1. Zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology.
2. In the textile industry, it is used in the inspection of raw materials and cotton wool fabrics.
3. In the electronics industry, it is used as operating tools such as transistor soldering, mobile phone electronic maintenance, watch maintenance and inspection.
4. In biological anatomy, applied to local anatomy.
5. In the manufacture of precision parts, it is applied to the device of machine tools, the observation of the working process, the inspection and assembly of precision parts.
6. Surface quality of lenses, prisms or other transparent substances, and quality inspection of precision scales.
7. Cultural relics, books, coins, calligraphy and paintings, the inspection
8. Widely used in textile products, chemical chemistry, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields.



Features:
7X – 45X Continuous Zoom Magnification Power
45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces
Trinocular port for adding photo or video capability
30mm Super Widefield WF10X Eyepieces with 20mm Field of View
High Resolution with Great Flatness and Contrast
Sharp Stereo Erect Images over a Wide Field View
Crystal Clear Original True Color Images
Large Working Distance
Accurate Alignment Ensuring a Fatigue-Free Viewing
Full Optical Glass Elements
Precise Ground Glass Lens
All Metal Mechanical Components
Adjustable Interpupillary Distance
Manufactured under ISO 9001 Quality Control Standard

Specifications:
Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.5:1
Trinocular Port: 23mm photo port
Interpupillary Distance: 2-1/8" to 3"(54-76mm)
Field of View: 1-1/4" (33mm)
Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm)
Head Mounting Size: 3" (76mm) diameter
Accessory Mounting Size: 1-7/8" (48mm female thread) diameter



76mm Microscope Stand Features:
Type: Microscope Stand
Material: Metal
Connectiong Objective: DIA 76mm
Connectiong Pillar: DIA 25mm/32mm
Stand Size:375 mm x 245mm x 320mm/200mm x 255mm x 250mm
Applications: Stereo Microscope Binocular Microscope Trinocular Microscope
Support base: 25mm/32mm
Boom hole diameter (ie connected to the microscope): 25mm/32mm
With the column diameter: ¢ 25mm/32mm



360 Degree Multi-axis Adjustable Metal Arm Features:
Cross arm length: 290mm
Boom diameter: ¢ 25mm
Microscope focusing installation length:130mm
Color: Silver+black
Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Steel Gears on Focusing Holder.
Standard Size Focusing Holder – Will Fit Scope Heads with Diameter of 76mm
Microscope bracket, strong bearing capacity, adjustable, 360 degree rotation, lifting, pole adjustment, free focus



Auxiliary Objective Lens Features:
0.5X Microscope Auxiliary Objective Lens(Working Distance 160 mm)
0.7X Microscope Auxiliary Objective Lens(Working Distance 120 mm)
0.75X Microscope Auxiliary Objective Lens(Working Distance 117 mm)
1.0X Microscope Auxiliary Objective Lens(Protection function)
1.5X Microscope Auxiliary Objective Lens(Working Distance 45 mm)
2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)



Package Including:
1 x Trinocular Stereo Zoom Head
1 x Pair of Super Widefield 10X20MM Eyepieces
1 x 23.2mm Interface Adapter
1 x Pair of Eye-Guards
1 x Dust Cover
1 x Ring Light
1 x Stand
1 x 25mm or 32mm Pillar
1 x 25mm or 32mm Fixing Ring
1 x 76mm Focusing Holder
1 x High temperature resistant working pad
(Optional)
1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)
1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)
1 x 1.0X Microscope Auxiliary Objective Lens(Protective Function Lens)
1 x 360 Degree Multi-axis Adjustable Metal Arm
