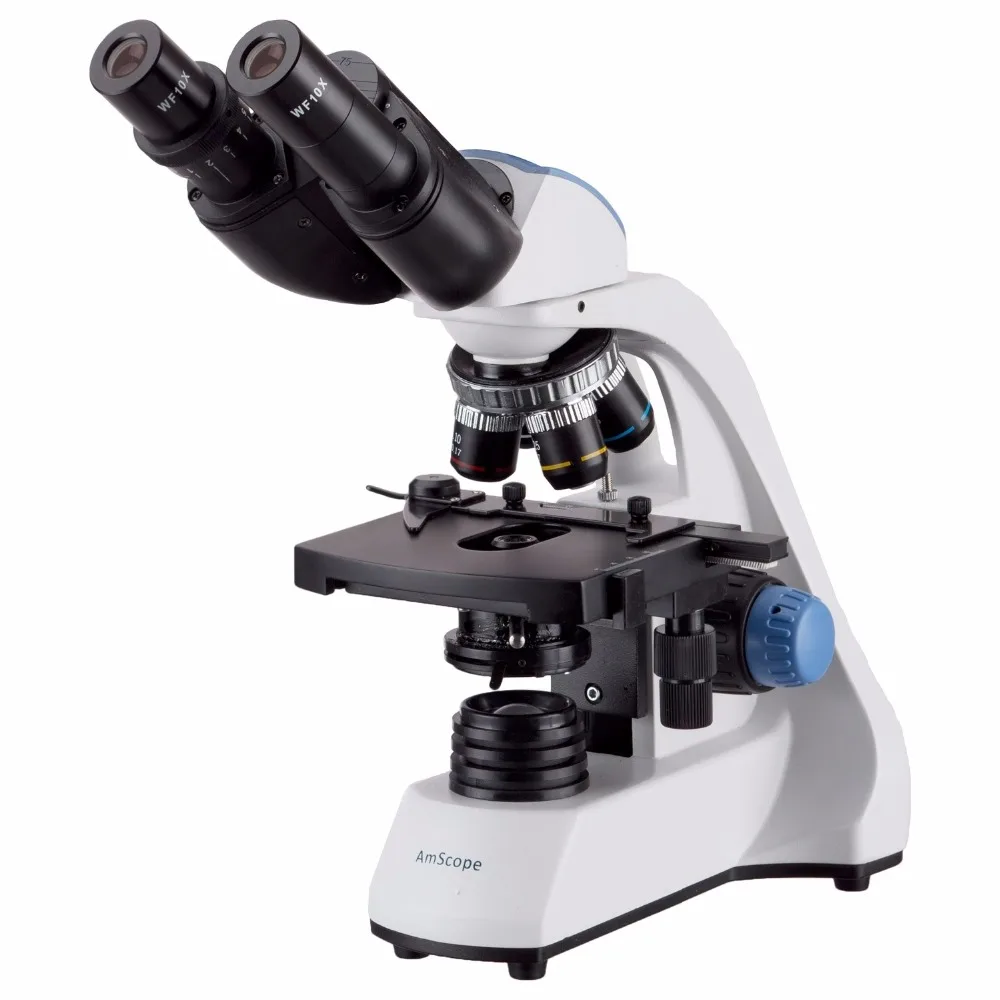

AmScope 40X-2000X LED Binocular Compound Microscope with 3D Two-Layer Mechanical Stage

$ 753

SKU: 4000363521489 Category:

Description

  • Magnification Ratio: 500X – 1500X
  • Drawtube: BINOCULAR
  • Certification: CE
  • Material: Metal
  • Origin: Mainland China
  • Model Number: B250B
  • Brand Name: AmScope
  • Theory: Biological Microscope

Our new binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage with course & fine focusing, and an LED illumination system. There are eight magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X, & 2000X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.

Features :

  • 30 degree inclined 360 degree swiveling Siedentopf binocular head

  • High quality precise optical glass elements

  • Easy to attach a microscope camera or digital imager

  • Eight magnification settings, 40X, 80X, 100X, 200X, 400X, 800X, 1000X, 2000X

  • Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)

  • Adjustable interpupillary distance

  • Adjustable ocular diopter

  • Variable intensity illumination

  • Coaxial coarse and fine focus adjustment

  • Focusing knobs are on both sides

  • Stage upward moving lock protects objectives and slides

  • Stain-resistant double layer mechanical stage

  • NA1.25 Abbe Condenser with iris diaphragm & filters

  • Rack and pinion adjustment condenser

Specifications :

  • Eyepieces: widefield, WF10X, WF20X

  • Objective: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)

  • Head: 30 degree inclined 360 degree swiveling binocular

  • Interpupillary distance: 1-4/5" – 2-9/10" (48mm – 75mm)

  • Adjustable ocular diopter

  • Nosepiece: revolving quadruple

  • Mechanical Stage: 3-D double layer

  • – Size: 4-5/8" x 5" (118mm x 127mm)

  • – Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)

  • Condenser: NA1.25 Abbe condenser with iris diaphragm

  • Illumination: LED light, transmitted, intensity adjustable, GS and CE approved

  • Focusing: coaxial coarse & fine knobs on both sides

  • Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included. AAA Batteries (3, included)

Packing List :

  • One Siedentopf Binocular Microscope Head

  • One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination

  • Four DIN Standard Objectives, 4X, 10X, 40X and 100X

  • One Pair of Widefield 10X Eyepieces

  • One Pair of Widefield 20X Eyepieces

  • Blue Color Filter
