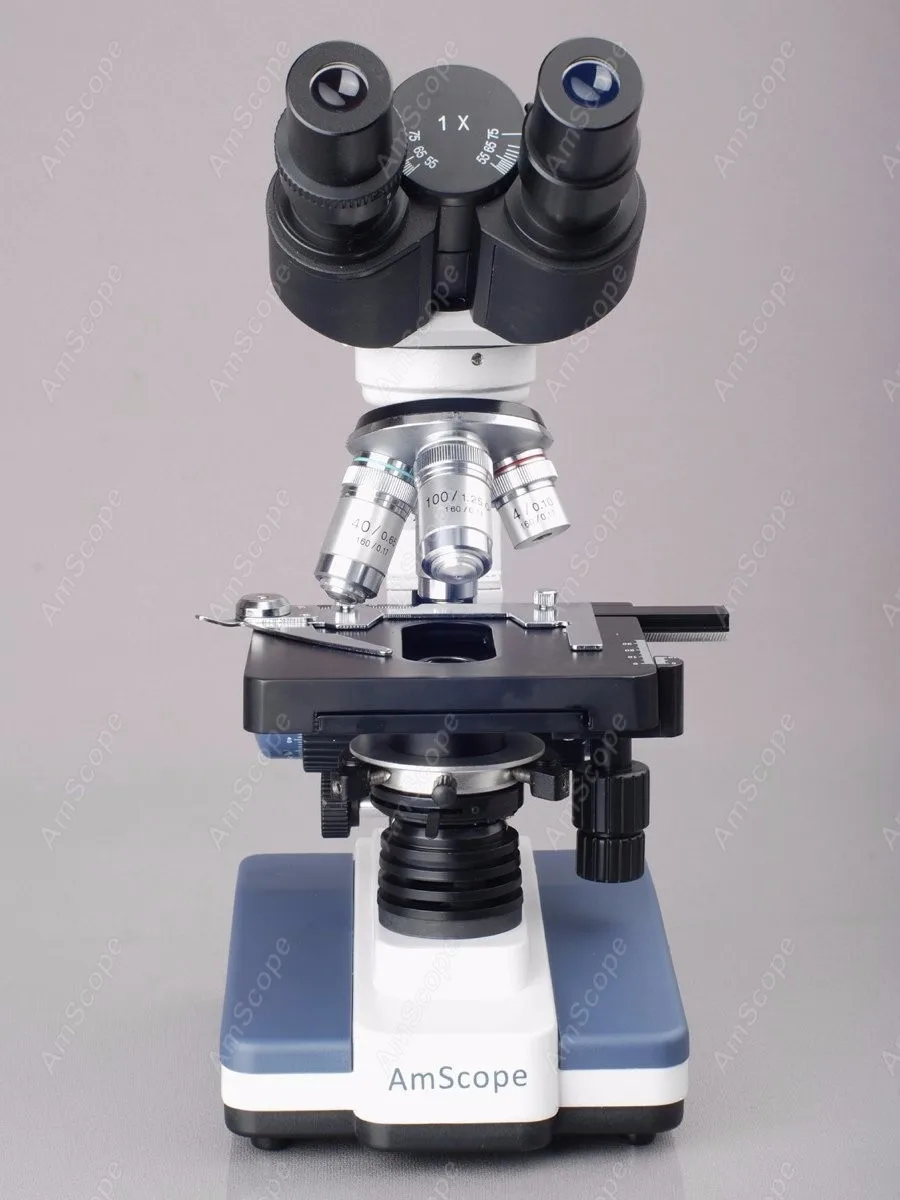

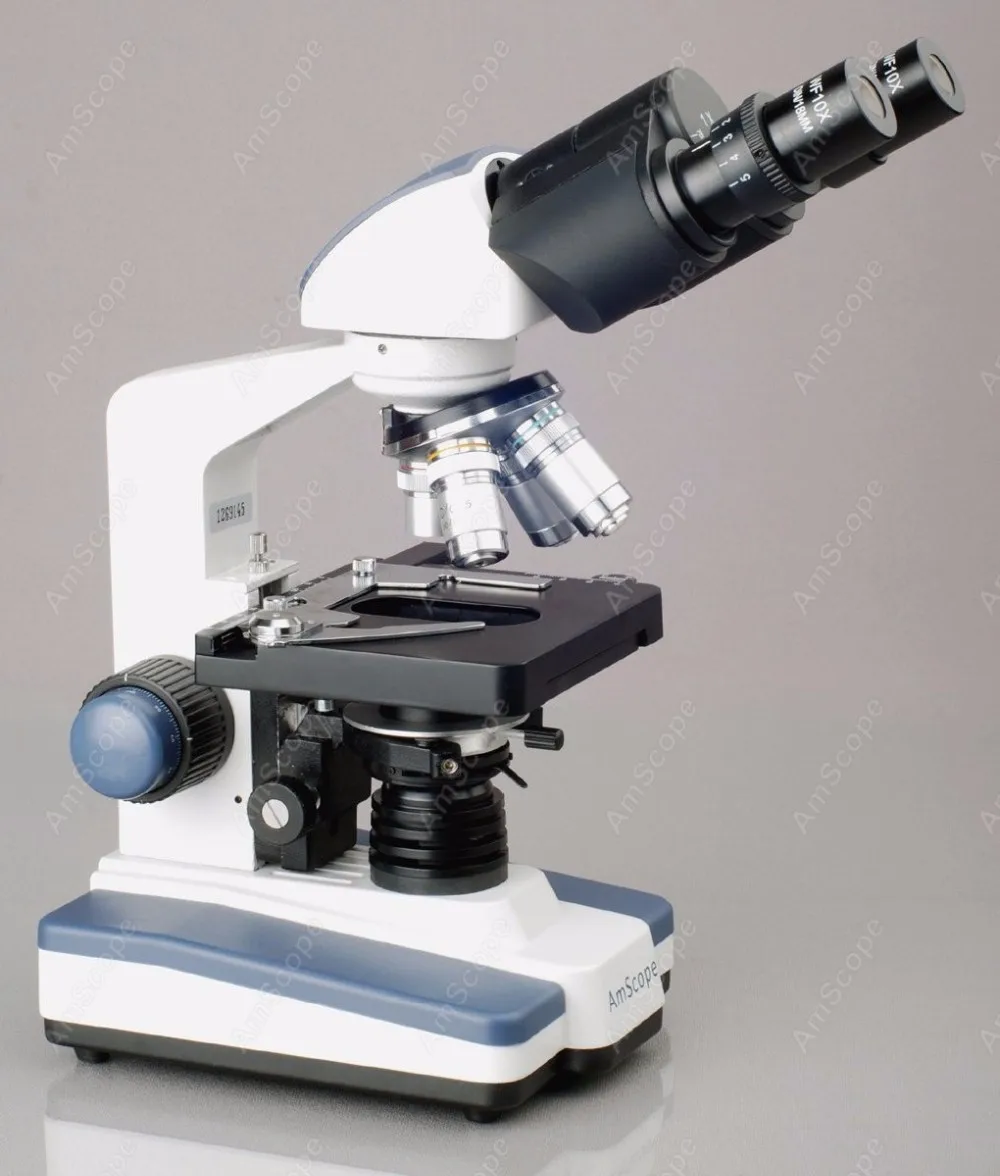

Binocular Compound Microscope–AmScope Supplies 40X-2500X LED Digital Binocular Compound Microscope w 3D Stage + 5MP USB Camera
$ 1.162
Description
- Magnification Ratio: 1500X – 3000X
- Drawtube: BINOCULAR
- Certification: CE
- Material: Metal
- Origin: Mainland China
- Model Number: B120C-E5
- Brand Name: AmScope
- Theory: Biological Microscope
- Magnification Ratio: 40X-2500X
Our new binocular compound microscope with 5MP USB camera is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for a range of people from students in high school to teachers including those with a major in biology, or enrolled in medical school. It comes with a professional Siedentopf binocular head, double layer mechanical stage, course & fine focusing, LED illumination, and a 5MP USB digital camera. There are five magnification settings: 40X, 100X, 250X, 400X, 1000X & 2500X.The digital camera captures still images, streams live videos on your computer screen and is compatible with Windows XP/Vista/7/8, Mac OS X, and Linux. The user-friendly editing and processing software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), Video Recording and Measurement functions. Live video and image capture can be set in different resolutions simultaneously. You can edit and process image captures in a manner similar to PhotoShop. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches. Your product will arrive in a factory sealed box with a retail value above $900.
Microscope Features :
-
30 degree inclined 360 degree swiveling Siedentopf binocular head
-
High quality precise optical glass elements
-
Five magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X
-
Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
-
Two pairs of widefield eyepieces: WF10X and WF25X
-
Adjustable interpupillary distance
-
Adjustable ocular diopter
-
Variable intensity illumination
-
Coaxial coarse and fine focus adjustment
-
Focusing knobs are on both sides of the microscope
-
Stage upward moving lock protects objectives and slides
-
Stain-resistant double layer mechanical stage
-
NA1.25 Abbe condenser with iris diaphragm & filters
-
Rack and pinion adjustment condenser
-
Manufactured under ISO 9001 Quality Control Standard.
-
Excellent five (5) year manufacturer warranty.
Specifications :
-
Eyepieces: widefield, WF10X and WF25X
-

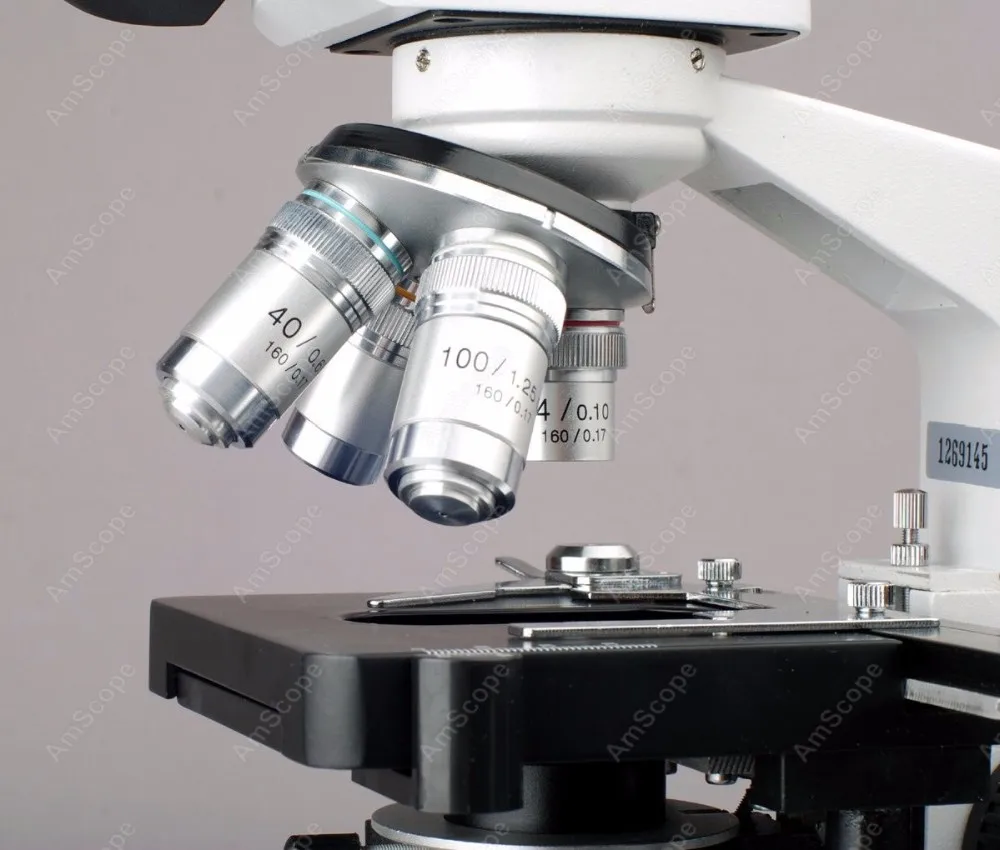

Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
-
Head: 30 degree inclined 360 degree swiveling binocular
-
Interpupillary distance: 2-1/8" – 3-1/8" (53mm – 77mm)
-
Adjustable ocular diopter
-
Nosepiece: revolving quadruple
-
Mechanical Stage: 3-D double layer
-
Size: 4-5/8" x 5" (118mm x 127mm)
-
– Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)
-
Condenser: NA1.25 Abbe condenser with iris diaphragm
-
Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
-
Focusing: coaxial coarse & fine knobs on both sides
-
Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
-
Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)

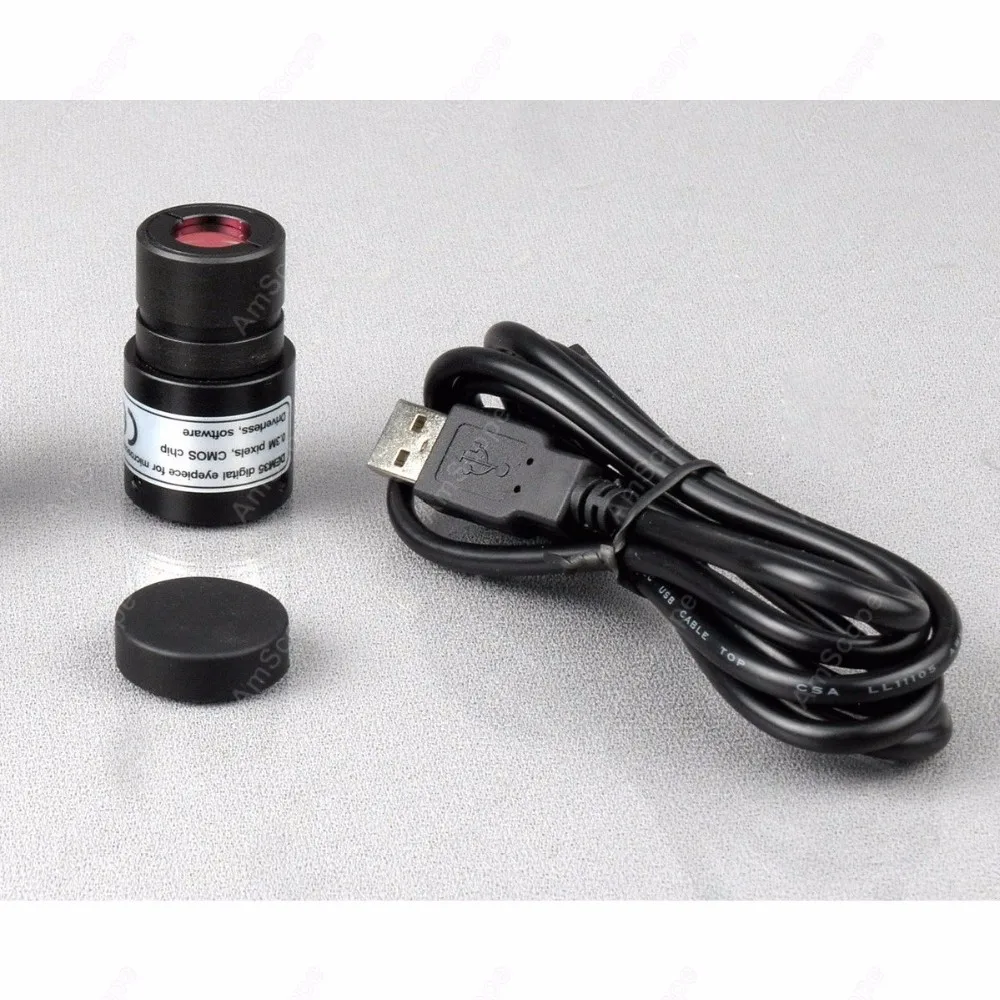

Camera Specs:
-
Resolution: 2592×1944 (approx. 5,200,000 pixels)
-
Sensor Size: 1/2.5" (5.70mm(H) x 4.28mm(V), diagonal 7.13mm)
-
Pixel Size: 2.2μm x 2.2μm
-
G Sensitivity: 0.53v / lux-sec (550nm)
-
Frame Rate: 2fps @2592×1944, 3fps @2048×1536, 5fps @1600×1200, 7.5fps @1280×1024, 30fps @other resolutions
-
Operating System: Windows XP/Vista/7/8 (32 & 64 bit), Mac OS X, Linux
-
PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, USB2.0 port
-
Advanced software for Windows:
– offers stitching, EDF, video recording and measurement functions
– conducts measurements for lengths, angles, arcs, areas and etc.
– saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
– edit and process microscopy images in a manner similar to PhotoShop
– live video and still image capture can be set in different resolutions simultaneously -
Life-time free software upgrades
Packing List :
-
One Siedentopf Binocular Microscope Head
-
One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
-
Four DIN Standard Objectives, 4X, 10X, 40X and 100X
-
One Pair of Widefield 10X Eyepieces
-
One Pair of Widefield 25X Eyepieces
-
One Blue Color Filter
-
One Dust Cover
-
User’s Microscope Manual
-
One 5MP USB2.0 Digital Camera
-
One 6′ (1.8m) USB Cable
-
One CD with Software, Driver and User’s Instructions
-
Net weight: 12 lbs
-
Shipping weight: 14 lbs
