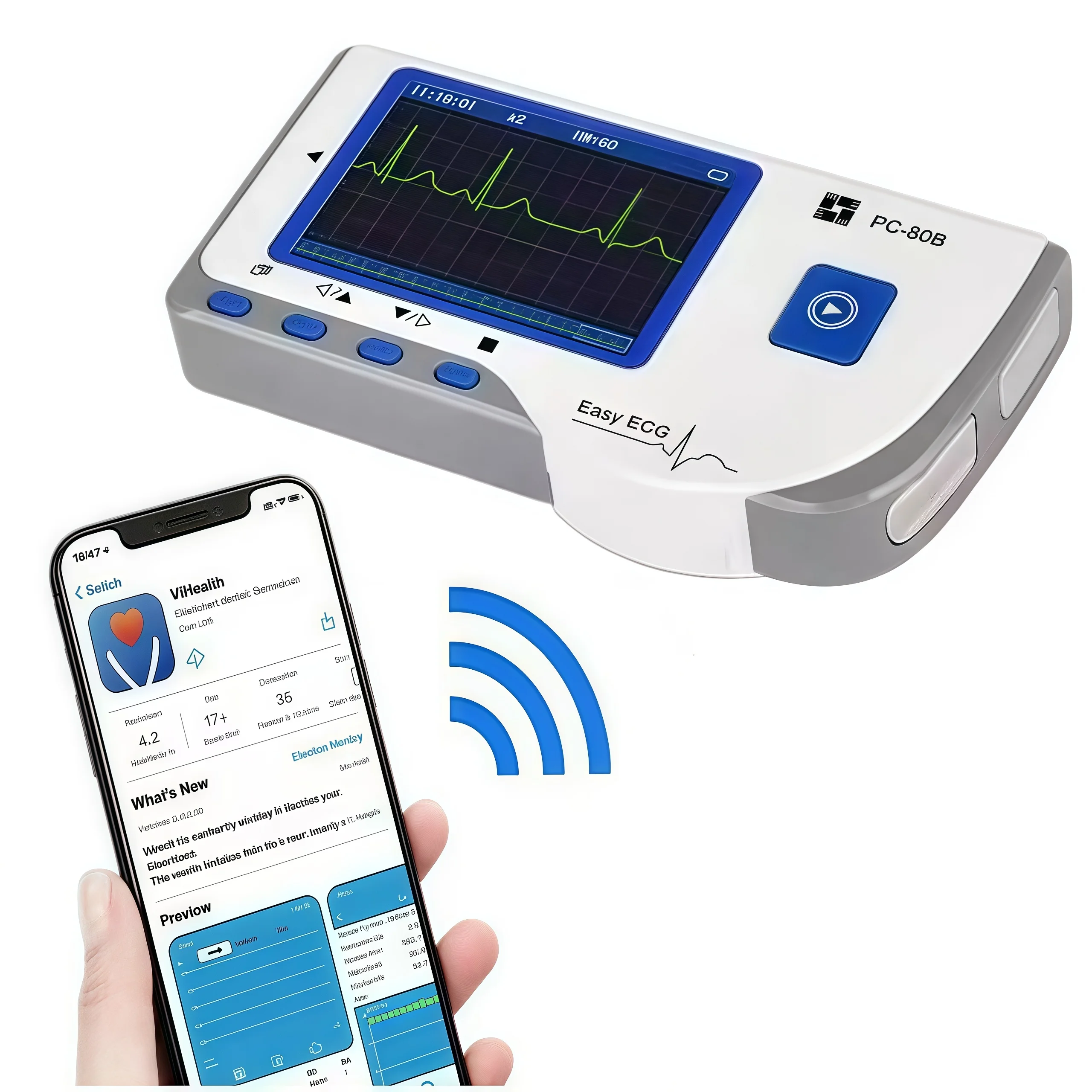

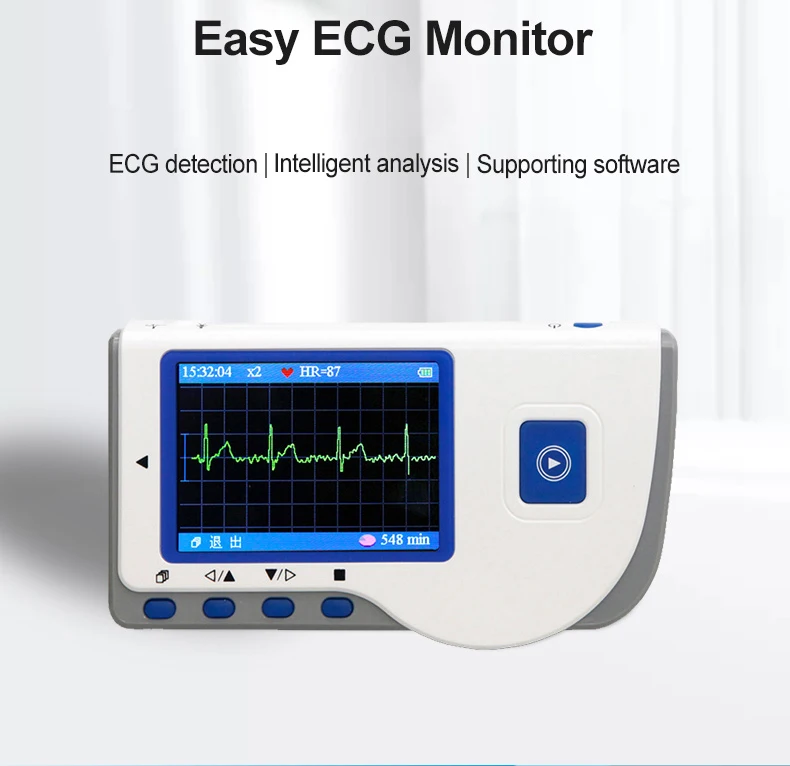

Bluetooth electrocardiogram monitor, medical heart rate monitor, portable electrocardiogram machine, APP data storage LED screen
$ 351
Description
- Hign-concerned Chemical: None
- Origin: CHINA
- Model Number: PC-80
- Application: Arm
- Material: ABS
- Brand Name: schbit
- Item Type: Electrocardioscanner
- Model Number: Removable Battery
- CERTIFICATION: CE ISO FSC
- Product name: ECG Monitor
- Display: 2.8 inch color LCD screen
- Measurement time: 30s quick measurement/continuous measurement
- Measurement result: 17 types
- Data storage: 2700 groups record or 22 hours trend
- Data transmission: By wireless real-time transfer
- Features: Android/IOS application for real-time display and storage
- Features2: Communication protocol, SDK available for integration
dynamic monitor ECG
The performance characteristics:

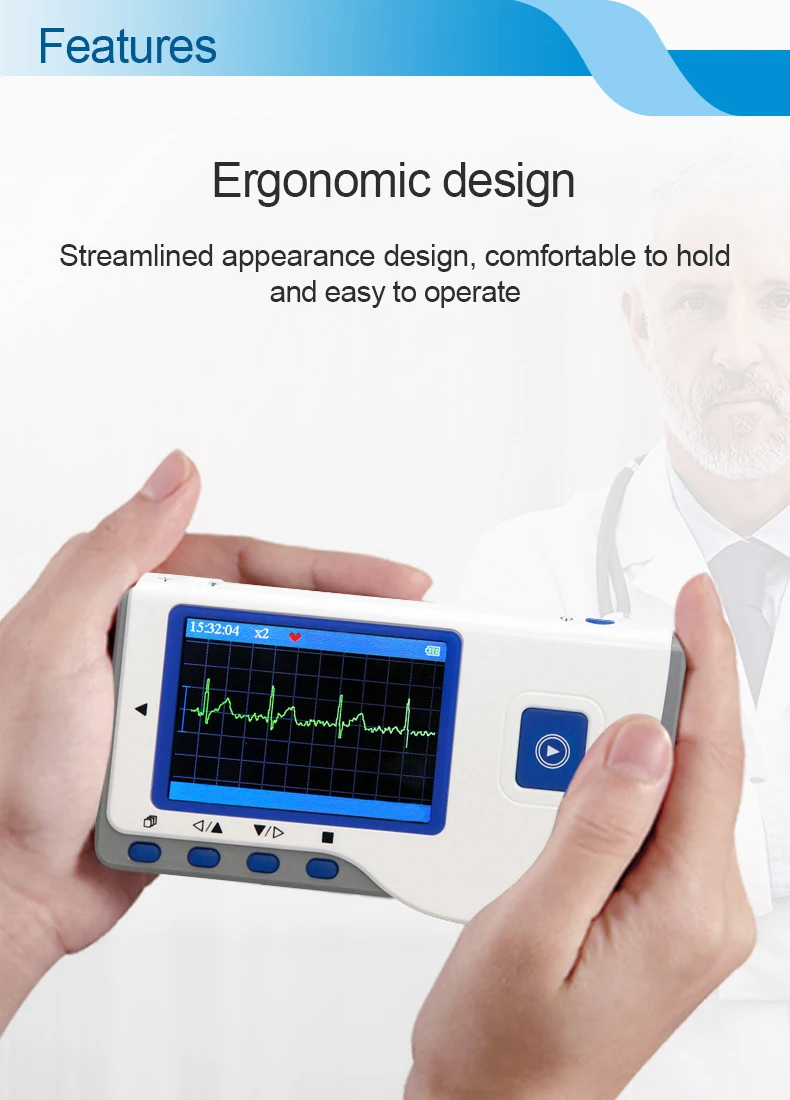

1, small volume, light weight, easy to carry
2, one-click measurement, simple operation

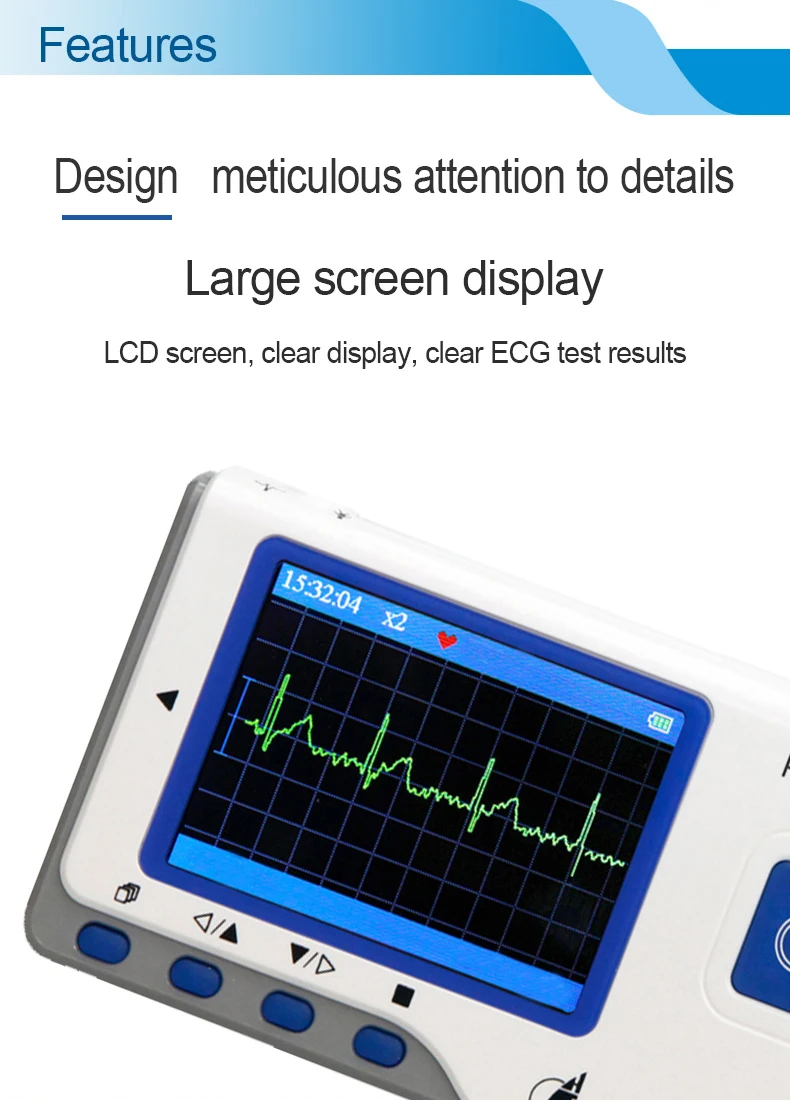

3, color LCD display, 240 x160 pixel

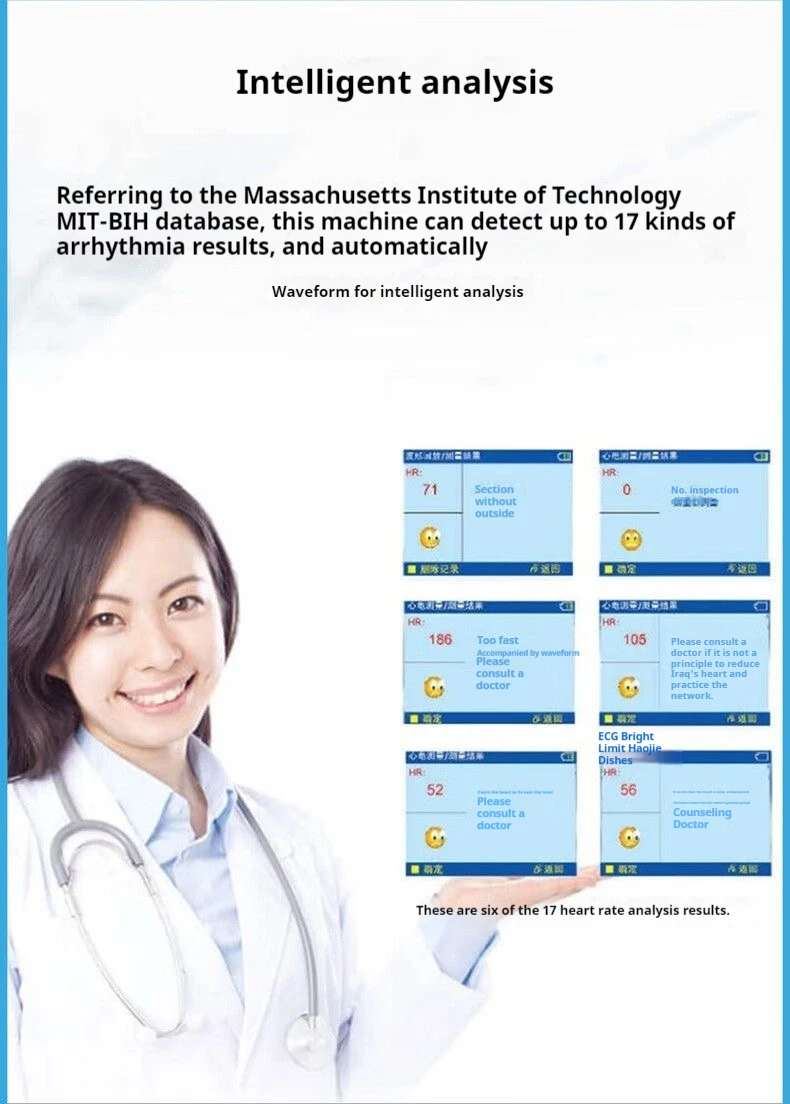

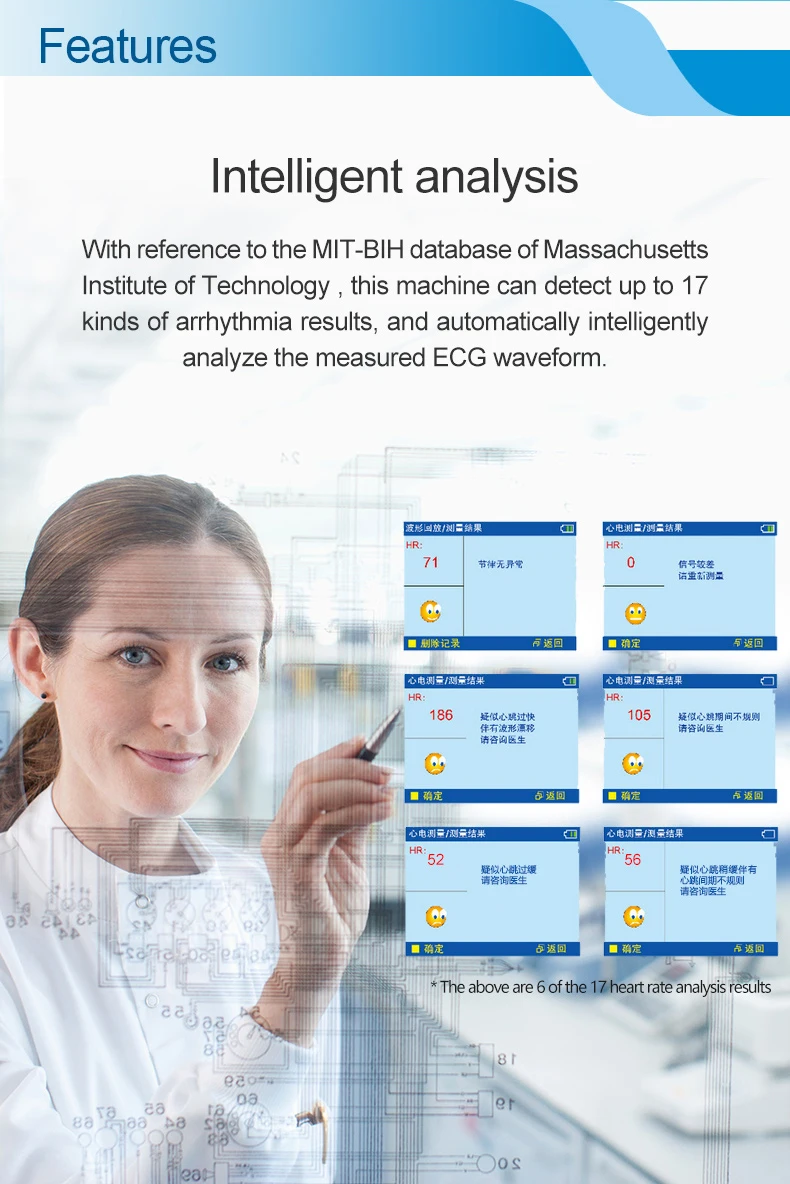

4, 17 kinds of arrhythmia analysis results
5, the machine can store 300 records, and playback
6, extensible 8 g SD card, increase the storage capacity
8, with functions of data management, data can be copied, upload and delete

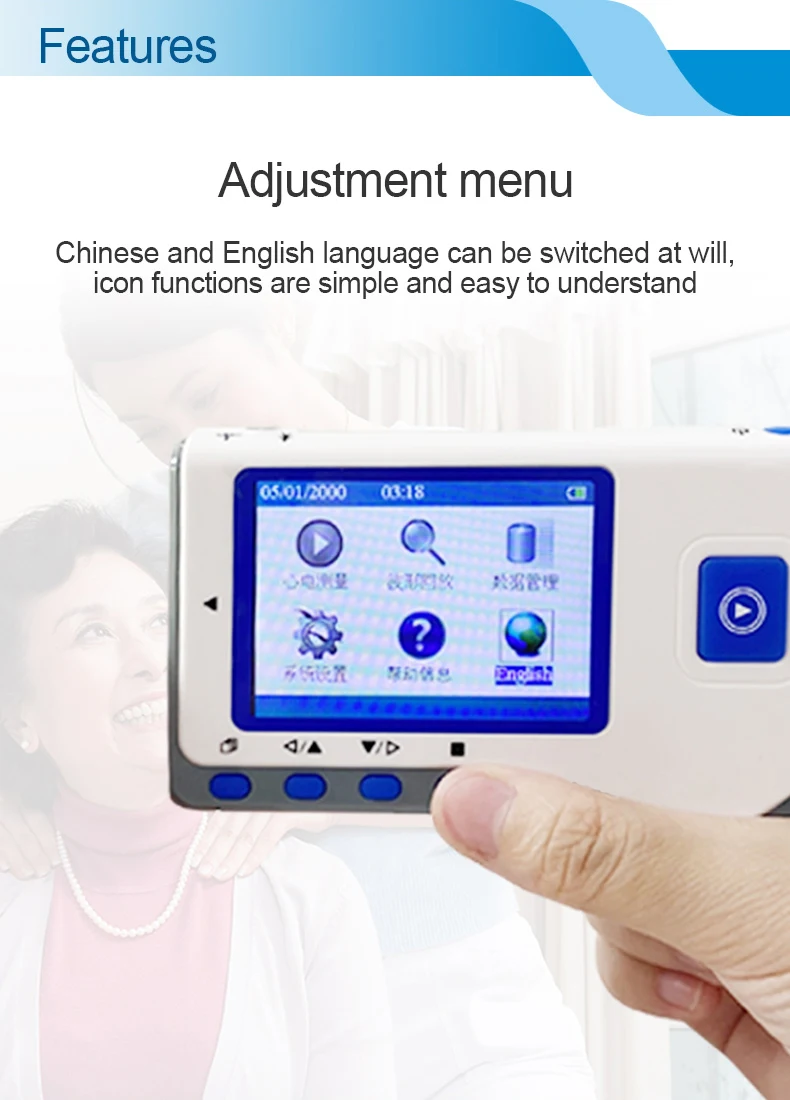

9, has time to set up and display function
10, the display brightness is adjustable, day and night can be easy to use
10, has helped prompt function, according to the prompt can quickly grasp products use
10 and scalable external ecg sensors
8, more than 1 minute after no signal in a row, with functions of automatic shutdown
9, two sections 7 (AA) alkaline batteries can be measured 1000 times, with a battery
Technical parameters:
ecg
Channel number detection: 1 (differential input)
Measuring electrode: integration of three metal electrodes, or by three ecg electrode slice through the matching of the lead wire on receiving the lead wire interface

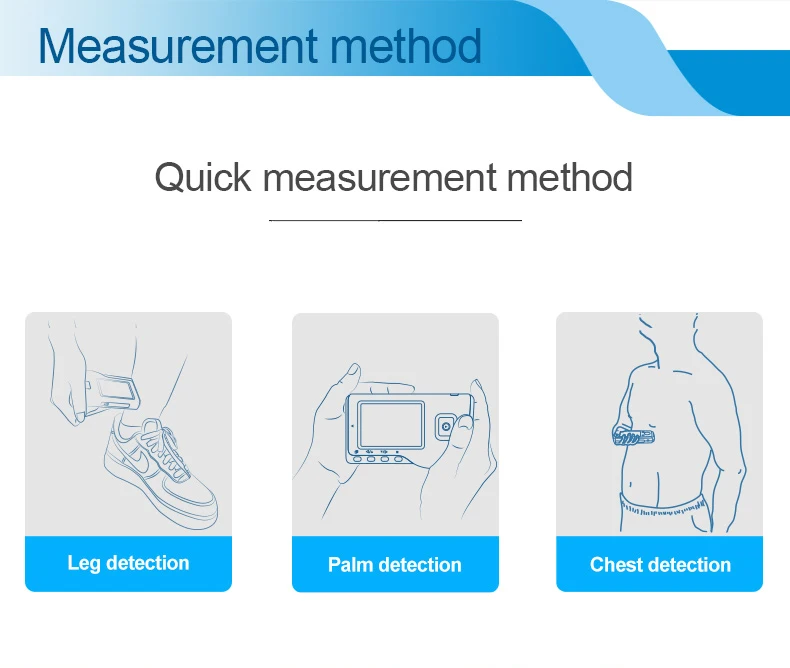

Measuring parts: measured ecg signal can lead to standard I (between right and left hand), or chest lead (between right and chest close to your heart
Or lead II (between right and left leg)
The amplitude frequency characteristics: 1 hz ~ 40 hz
Internal noise: 30 mu or less Vp – p
Heart rate measurement range: 30 BPM ~ 240 BPM
Heart rate measurement accuracy: + / – 1 BPM
Waveform display sensitivity: 5.0 mm/mV;Error: plus or minus 10%
Common mode rejection ratio: > 60 db
Scanning speed: 20 mm/s;Error: plus or minus 10%
Input loop current: 0.1 or less (including A
Input impedance: 5 M or more Ω
The power supply
Battery type: section 2 AAA alkaline batteries
Working voltage, d.c., 2.7 V to 3.3 V
Average working current: 50 or less ma (not open backlighting)
Automatic shutdown time: detector boot no action, 35 s automatic shutdown within + / – 5 s
Tip: low voltage, dc 2.5 V + / – 0.2 V
Display mode
Display type: color LCD display
Can display area size: 57.6 mm x 40 mm
Data is stored
Extensible SD card to store data (optional)
Machine can be stored in data transmission to the computer through a dedicated cable.(optional)
The volume weight
Dimension: 125 * 70 * 21.5 mm high
Weight: 106 g (including battery)
The work environment
Environmental humidity: 30% ~ 80%
The atmospheric pressure range: 70 kpa to 106 kpa
