CONTEC Digital Bluetooth Spirometer SP80B SP70B SP10 Lung Breath Diagnostic Vitalograph Spirometer Comes with 10 Mouthpiece

$ 275 – $ 500

SKU: 1005003456515532 Category:

Description

  • Hign-concerned Chemical: None
  • Certification: CE
  • Model Number: SP70B
  • Origin: China
  • Brand Name: Contec
Tips 1:

Please "Follow" my store, you will get extra discount for fans.

Become my follower and get a special discount！

CONTEC Digital Bluetooth Spirometer SP80B SP70B SP10 Lung breath Diagnostic Vitalograph Spirometer comes with 10 mouthpieceCONTEC Portable Handheld Spirometer Bluetooth USB Date Transsion

                Mode Simple Operation Free Shipping

                                  Care Health Care Life—–CONTEC

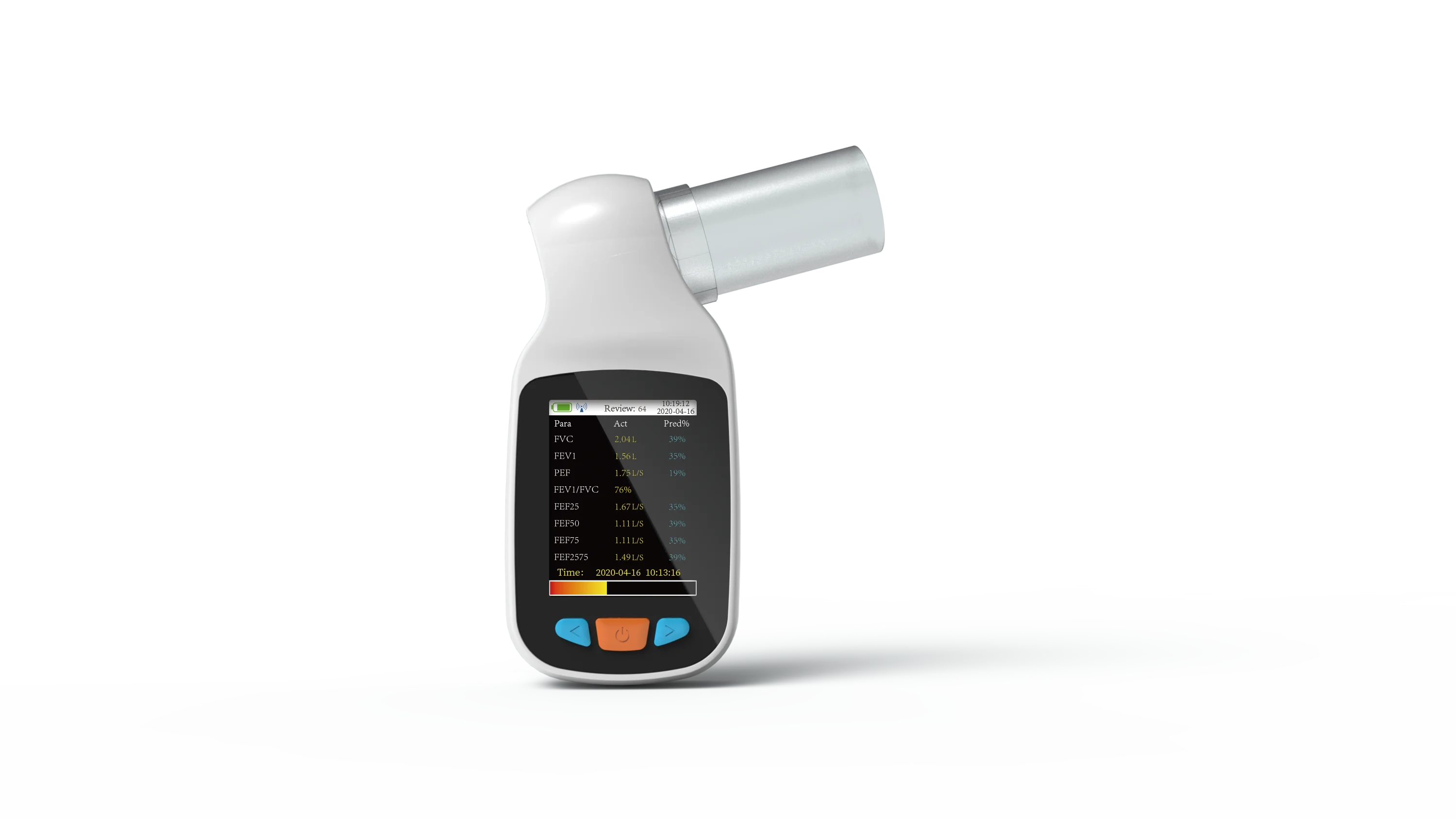

The SPIROMETER is a hand-held equipment for checking lung conditions, adopts the infrared signal acquisition mode for measuring items related to FVC, and it is applicable for hospital, clinic, family for routine test.

Feature

Forced Vital Capacity (FVC), Forced Expired Volume in one second (FEV1), the ratio of FEV1 and FVC (FEV1%), Peak expiratory flow (PEF), 25% flow of the FVC (FEF25), 75% flow of the FVC(FEF75) and average flow between 25% and 75% of the FVC(FEF2575) can be measured. Besides, the testee condition can be shown by the ratio of the measured value and the predicted value.
Flow rate-volume chart, volume-time chart display.
Data memory,delete, upload and review.
Trend chart display.
Scaling(Calibration).
Information prompts when volume or flow goes beyond the limits.
Automatic power off when there is no operation in one minute.
Rechargeable lithium battery and with charging tips.
Battery power display.

Performance:

Display mode: 1.8” color LCD
Display resolution: 160*128
Volume range: 0~10L
Volume accuracy: ±3% or 0.05L (whichever is greater)
Flow range: 1 L/S ~16L/S
Flow accuracy: ±10% or ±0.3L/s(whichever is greater)
Working current: 60 mA
Power supply: DC3.7V rechargeable lithium battery
Safety classification: internally powered equipment, type BF applied part

Physical characteristic:
Dimension: 97mm(L)× 89mm(W)×36mm(H)
Weight: 150g

Optional:
A nose clip more (Package not included,if you need it,please contact us by message.)

Package included:

1X SP10 Digital Lung Volume device Spirometer
1X USB data line
1XMouthpiece
1X Power adapter
1X User Manual

Functions
Forced Vital Capacity (FVC), forced expiratory volume in one second (FEV1) to forced vital capacity (FVC) ratio (FEV1/FVC), peak expiratory flow (PEF), forced expiratory flow at 25 % of FVC (FEF25), forced expiratory flow at 50 % of FVC (FEF50), forced expiratory flow at 75 % of FVC (FEF75) and forced expiratory flow from 25 %~ 75 % of FVC (FEF2575) can be measured;
The personnel information (including height, age, sex, etc.) can be set.
Flow-volume chart, volume-time chart display.
The data can be stored, deleted, uploaded and reviewed.
Trend chart display.
Health state indication.
Calibration function.
Over – limit prompt function for volume and flow.
Indicate expiration within 6 seconds by indicators.
Start measuring by one-button.
The data can be transmitted by Bluetooth or USB cable.
Real-time clock can be set and displayed.
Battery power indication.
Automatic shutdown when there is no operation within two minutes.
Performance
Display mode: 2.8” LCD
Volume range: 0 ~ 10 L
Volume accuracy: ± 3 % or ± 0.05 L (whichever is greater)
Flow range: 0 L/s ~16 L/s
Flow accuracy: ± 5 % or ± 0.2 L/s (whichever is greater)
Working current: 200 mA
Power supply: rechargeable lithium battery
Safety class: internally powered equipment, type BF applied part
Accessories
One User Manual
One USB cable
One mouthpiece (disposable accessory)
One nose clip (optional)
Physical characteristic
Dimension: 160 mm (L) × 65 mm (W )× 45 mm (H)
Weight: 190 g

Welcome to Contec Medical !

MANUFACTURE: CONTEC MEDICAL SYSTEMS CO.,LTD

We are CONTEC manufacturer. All products are sent directly from CONTEC factory

Introduction

SPIROMETER is a hand-held equipment for checking lung conditions, it adopts the infrared mode for measuring relative items, and is applicable for hospital, clinic, family for routine test.
Features
Parameters including FVC, FEV1, FEV1/FVC and PEF can be measured.
Personal information setup, including height, age, gender, etc.
Health status indication.
Bluetooth transmission.
Data memory and case review function.
Low battery indication.
Real-time clock display and setup.
Automatic power off function.
Mass storage device, stores up to 9999 cases.
Performance
Volume range: 0～10 L
Flow rate range: 0 L/s～16 L/s
Volume accuracy: ±3 ％ or 0.05 L (whichever is greater)
Flow rate accuracy: ±5 ％ or 0.2 L/s (whichever is greater)
Safety classification: internally powered equipment, type BF applied part
Working current: 80 mA
Power supply: two AAA batteries
Accessories
1)A User Manual
2)A mouthpiece (disposable)
3)A nose clip (optional)
Physical characteristic
Dimension: 138 mm(L)×63 mm(W)×47 mm(H)
Weight: 150g (with batteries)
