This professional trinocular microscope is designed for teaching and clinical use. Its high quality optics and precision mechanics have made this model a favorite for veterinarians and clinics. It has a large compliment of optional accessories for darkfield, phase-contrast, and fluorescence.

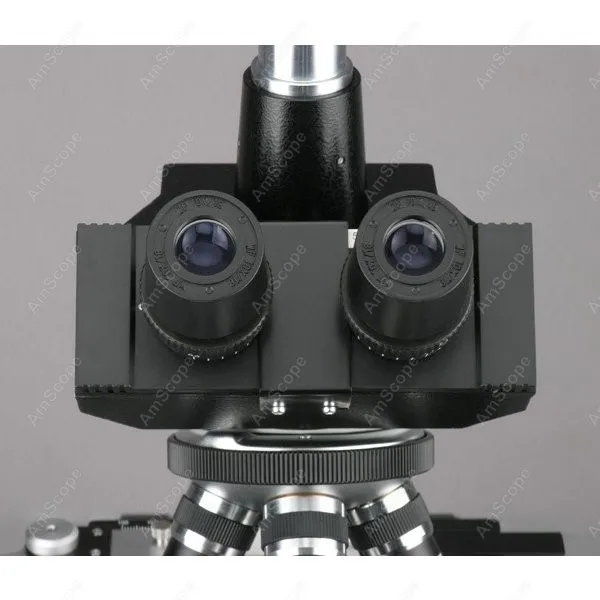

The trinocular head can be customized for each user, with a sliding interpupillary adjuster for varying eye spacing, and diopters for both eyes to fine-tune focus for nearsighted users and for asymmetry. The head can be rotated 360°, and has a 45° incline for viewing while seated or standing. Interchangeable eyepieces allow for an expanded magnification range, or the use of special eyepieces with pointers and measuring reticles. The trinocular photo port provides a dedicated mount for using a camera. The port is height-adjustable to match focus with the eyepieces, and does not require switching when used simultaneously with the eyepieces.

The objective turret provides instant access to 4 magnification levels to easily focus in on minute details from 40X to 1000X. Additional 20X eyepieces expand the maximum magnification to 2000X with 8 unique levels. This covers magnifications needed for studying hair follicles, cells, and bacteria. These high-quality lenses are achromatically corrected to improve resolution and color accuracy.

The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage’s low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level.

The halogen sub-stage lighting provides bright illumination with excellent color rendering. The warm lighting is better suited for prolonged use, causing less eyestrain than LED and fluorescent lighting. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and an iris diaphragm to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion movement for precise height adjustment.

Monitor and capture photos and videos with the included 1.3MP USB2.0 camera. The C-mount camera is specially designed for use with microscopes, allowing you to watch live images, and to record photos or videos on your computer. This ability to view microscopic images on your computer reduces eye-strain, and allows groups of people to view images at the same time. A 0.37X reduction lens is included for use with 23mm-30.5mm ports to capture more of the microscope’s field-of-view. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, image stitching, and a full complement of measuring tools. A lite version of our software is available for Mac and Linux with essential functionality for capturing photos and videos.

Specifications

Optical System Finite-conjugate

Mechanical Tube Length 160mm

Head Trinocular, 45° incline, 360° rotatable

Interpupillary Adjustment sliding, 55-75mm

Ocular Diameter 23mm

Eyepieces 10X, 20X

Photo Port 23mm tube, rotating height-adjustment

Objective Lenses DIN standard

Objective Parfocal Distance 45mm

Objective Mounting Thread RMS 20.32mm

Objective Turret quadruple

Focusing System Coaxial coarse and fine focus

Focus Range 30mm

Division of Fine Focus 0.002mm

Stage Design Double-layer with caliper

Stage Dimensions 140mm x 140mm

X-Y Translation Range 75mm x 50mm

Transmitted Illumination 20W halogen

Condenser Abbe condenser with iris diaphragm, NA1.25, Ø 32mm filter holder

Sub-stage Condenser-holder rack and pinion

Power 100-240VAC 50/60Hz wide-band

Dimensions 11" x7-1/2" x 15-3/4" (28cm x 19cm x 40cm)

Objective Lenses

Magnification Corrections NA Immersion Medium Cover-glass Thickness

4X achromatic 0.10 — 0.17mm

10X achromatic 0.25 — 0.17mm

40X achromatic 0.65 — 0.17mm

100X achromatic 1.25 oil 0.17mm

Camera Specifications

Sensor Type CMOS

Sensor Optical Format 1/3"

Active Pixels 1.3M (1280 x 1024)

Pixel Size 3.6µm x 3.6µm

Active Sensor Area 4.60mm x 3.70mm

Shutter electronic rolling shutter

Sensitivity 1.0V/Lux-sec

Spectral Response 380-650nm with IR-cut filter

Capture Resolution and Maximum Framerate 15fps @ 1280×1024

26fps @ 640×512

50fps @ 320×256

Connectivity USB 2.0

Lens-mount C-mount

Compensating Lens 0.37X

Power 5VDC over USB

Software

OS Requirements Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+

Hardware Requirements Intel Core2 2.8GHz or comparable processor, 4GB RAM

Features

Windows Version

Live video preview

Captures still images and video

Time-lapse capture

Exposure and white-balance controls

Dark-field correction

Digital binning

Image processing

Measurement tools, including lines, arcs, polygons

Segmentation and counting tools

Image-stitching, extended depth-of-field, HDR

Fluorescence color-mapping

Mac/Linux Versions

Live video preview

Captures still images and video

Exposure control

Color adjustment

Measurement tools, including lines, arcs, polygons

Packing List:

One trinocular microscope head

One microscope body

Four objective lenses: 4X,10X,40X,100X

One pair 10X eyepieces

One pair 20X eyepieces

One power cord (US and Canada standard)

One mirror for ambient lighting

One dust cover

Three color filters

One spare halogen bulb (6V/20W)

One spare fuse

One C-mount USB camera

One 0.37X reduction lens

Two sizing adapters

One USB Type B to USB type A cable
